KEY INSTRUCTION
INCRITE IS A COMPANY COMMITTED TO YOU, THAT IS WHY WE PUT AT YOUR DISPOSAL THIS INSTRUCTION THAT MAKES YOU EASIER TO USE AND MANAGE OUR PRICE CATALOG.
KNOWING THE BRANDS OF THE VEHICLES IS THE FIRST STEP TO BE ABLE TO UNDERSTAND THE MEANING OF THE AUTOMOTIVE GLASS CODE.
THE KEY IS TAKEN FROM THE BOOK "NAGS" (NATIONAL AUTOMOTIVE GLASS SPECIFICATION) WHICH CONSISTS OF 5 DIGITS, THE LESS NUMBER CORRESPONDS TO THE RIGHT SIDE AND THE GREATEST NUMBER TO THE LEFT SIDE, REGARDLESS OF WHETHER THEY ARE EVEN OR NOT.
| EXAMPLE | ABBREVIATION | |
|---|---|---|
| FD-28307 | PUERTA D DER | (FRONT RIGHT DOOR) |
| FD-28308 | DOOR R LEFT | (FRONT LEFT DOOR) |
| FD-28313 | RIGHT T DOOR | (REAR DOOR RIGHT) |
| FD-28314 | DOOR T LEFT | (REAR LEFT DOOR) |
ANDTHE NEXT STEP IS TO KNOW HOW TO IDENTIFY THE KEYS.
Below it will be shown how each of them are made:
Keys begin with the letter "D" is domestic or American Made
EXAMPLE: DD-08975
When the first letter is "F" it is foreign or of European or Asian manufacture.
EXAMPLE: FD-05336
DESCRIPTION AND EXAMPLES

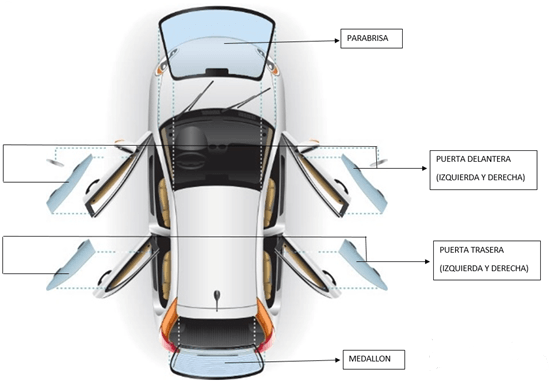

Having identified the origin of the vehicle, the next step is to know the type of glass that is required and for this there are two variables to take into account:
A) In curved glasses, the second letter of the code indicates the type of glass
B) In flat crystals, the third letter of the code indicates the type of crystal
| ABBREVIATION | MEANING | DESCRIPTION |
|---|---|---|
| B | MEDALLION | REAR OF THE CAR |
| D | DOOR | FRONT OR REAR DOOR SIDE OF UNIT |
| Q | BEDROOM | REAR SIDE OF UNIT |
| V | FIN | REAR SIDE OF UNIT |
| T | FLAT | ANY TYPE OF SIDE, FRONT OR REAR OF THE UNIT |
| WINDSHIELD KEY | FIRST LETTER | SECOND LETTER | THIRD LETTER |
|---|---|---|---|
| DW-03183 | D (DOMESTIC) | W (WINDSHIELD) | - |
| DTW-04559 | D (DOMESTIC) | T (PLANO) | IN (PARABRISAS) |
| FW-00548 | F (FORANEO) | W (WINDSHIELD) | - |
| FTW-02612 | F (FORANEO) | T (PLANO) | W (WINDSHIELD) |
| DOOR KEY | FIRST LETTER | SECOND LETTER | THIRD LETTER |
|---|---|---|---|
| DD-09939 | D (DOMESTIC) | D (DOOR) | - |
| DD-09940 | D (DOMESTIC) | D (DOOR) | - |
| DTV-02506 | D (DOMESTIC) | T (PLANA) | D (DOOR) |
| FD-03427 | F (FORANEO) | D (DOOR) | - |
| FD-03428 | F (FORANEO) | D (DOOR) | - |
| FTD-11982 | F (FORANEO) | T (PLANA) | D (DOOR) |
| FIN KEY | FIRST LETTER | SECOND LETTER | THIRD LETTER |
|---|---|---|---|
| DV-09943 | D (DOMESTIC) | V (ALETA) | - |
| DV-09944 | D (DOMESTIC) | V (ALETA) | - |
| DTV-02348 | D (DOMESTIC) | T (PLANO) | V (ALETA) |
| FV-23037 | F (FORANEO) | V (ALETA) | - |
| FV-23038 | F (FORANEO) | V (ALETA) | - |
| FTV-02958 | F (FORANEO) | T (PLANO) | V (ALETA) |
| KEY FOUR | FIRST LETTER | SECOND LETTER | THIRD LETTER |
|---|---|---|---|
| DQ-08736 | D (DOMESTIC) | Q (FOURTH) | - |
| DQ-08737 | D (DOMESTIC) | Q (FOURTH) | - |
| DTQ-02607 | D (DOMESTIC) | T (PLANO) | Q (FOURTH) |
| FQ-28965 | F (FORANEO) | Q (FOURTH) | - |
| FQ-28966 | F (FORANEO) | Q (FOURTH) | - |
| FTQ-02783 | F (FORANEO) | T (PLANO) | Q (FOURTH) |
| MEDALLON KEY | FIRST LETTER | SECOND LETTER | THIRD LETTER | FOURTH LETTER |
|---|---|---|---|---|
| DB-07158 | D (DOMESTIC) | B (MEDALLON) | - | - |
| BTD-02333 | D (DOMESTIC) | T (PLANO) | B (MEDALLON) | - |
| DBY-90027 | D (DOMESTIC) | B (MEDALLON) | AND (SECTIONED) | - |
| DTBY-02428 | D (DOMESTIC) | T (PLANO) | B (MEDALLON) | AND (SECTIONED) |
| FB-04268 | F (FORANEO) | B (MEDALLON) | - | - |
| FTB-05482 | F (FORANEO) | T (PLANO) | B (MEDALLON) | - |
| FBY-31865 | F (FORANEO) | B (MEDALLON) | AND (SECTIONED) | - |
| FTBY-24964 | F (FORANEO) | T (PLANO) | B (MEDALLON) | AND (SECTIONED) |
DBY-SECTIONED MEDALLION
REAR GLASS, DIVIDED BY THREE OR
In the manufacture of tempered glass we handle 5 colors of which only 4 appear in our price list because the solar color will be taken with the price in tintex color and you can identify them as follows:
| COLOR | ABBREVIATION |
|---|---|
| SURE | CL |
| TINTEX | TX |
| PRIVACY | PRIV |
| SOLAR | SL (NOT APPLICABLE) |
| GREY | GRS |
Additionally we use abbreviations which we describe below
| PTAS | DOORS |
| PTA | DOOR |
| HT | HARDTOP WITHOUT POST |
| HB | HATCHBACK |
| CONV | CONVERTIBLE |
| CAB EXT | EXTENDED CAB |
| CAB. IS | STANDARD CAB |
| MOV | MOVABLE |
| S / ALETA | WITHOUT FIN |
| C / ALETA | WITH FIN |
| CPE | CHOPPED OFF |
| PASSAGE | PASSENGERS |
| THE | RIGHT |
| LEFT | LEFT |
| D | FORWARD |
| T | REAR |
| CREW CAB | PASSENGERS CAB |
When you visualize OR
indicates the number of holes the glass has
When you see * it indicates that the product is manufactured by INCIRTE.
The word QUOTEIt refers to the fact that the product is not yet manufactured, but is scheduled to be manufactured.
When you see an additional key in the equivalence section, it can mean:
1.- What is an INCRITE equivalency
2.- What is an equivalence of solar color, privacy, etc ...
3.-That it can be used for a vehicle of the same line or another brand.
We hope that this instruction will be of great use to you, managing to satisfy your needs by making more and better products and services available to you.
